Factory Profile
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
To ensure the quality, we have professional technicians to check the pole during the manufacturing and before delivery.
We use sack to pack the poles at the pole top and bottom, which is our normal package. We also use wood between the poles but it costs just a bit more than normal package. We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
Specification
Height (ft) | Thickness (mm) | Butt Diameter (mm) | Top Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
China-GB | America-ASTM | Equivalent |
Q235 | Grade D | SS400,S235JO |
Q345 | Grade50[345] | S355JR |
Q420 | Grade60[415] | S420NL |
Q460 | Grade65[450] | S460NL |
Drawing

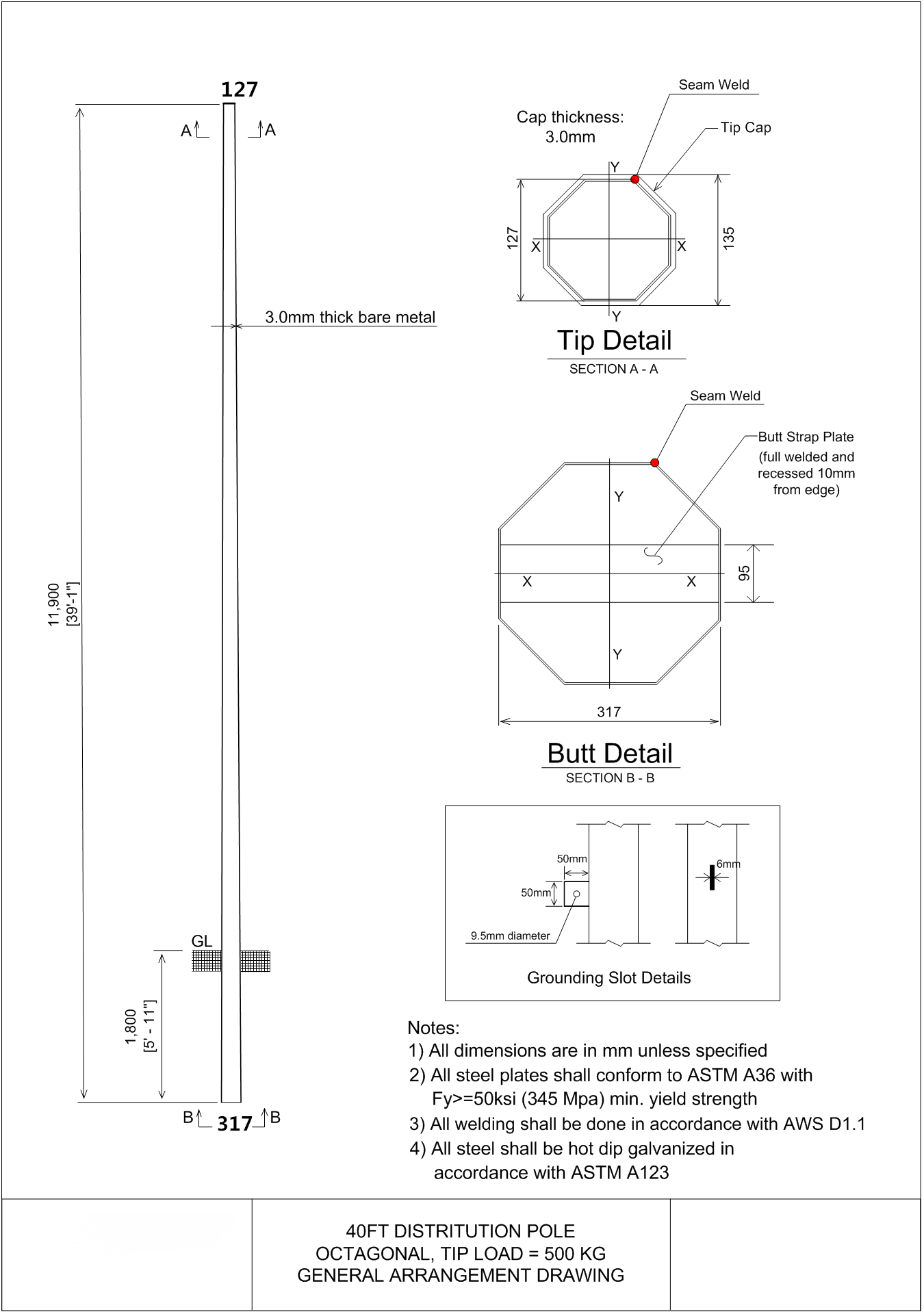

We have a detailed drawing for the 40FT electric steel poles.
Inspection

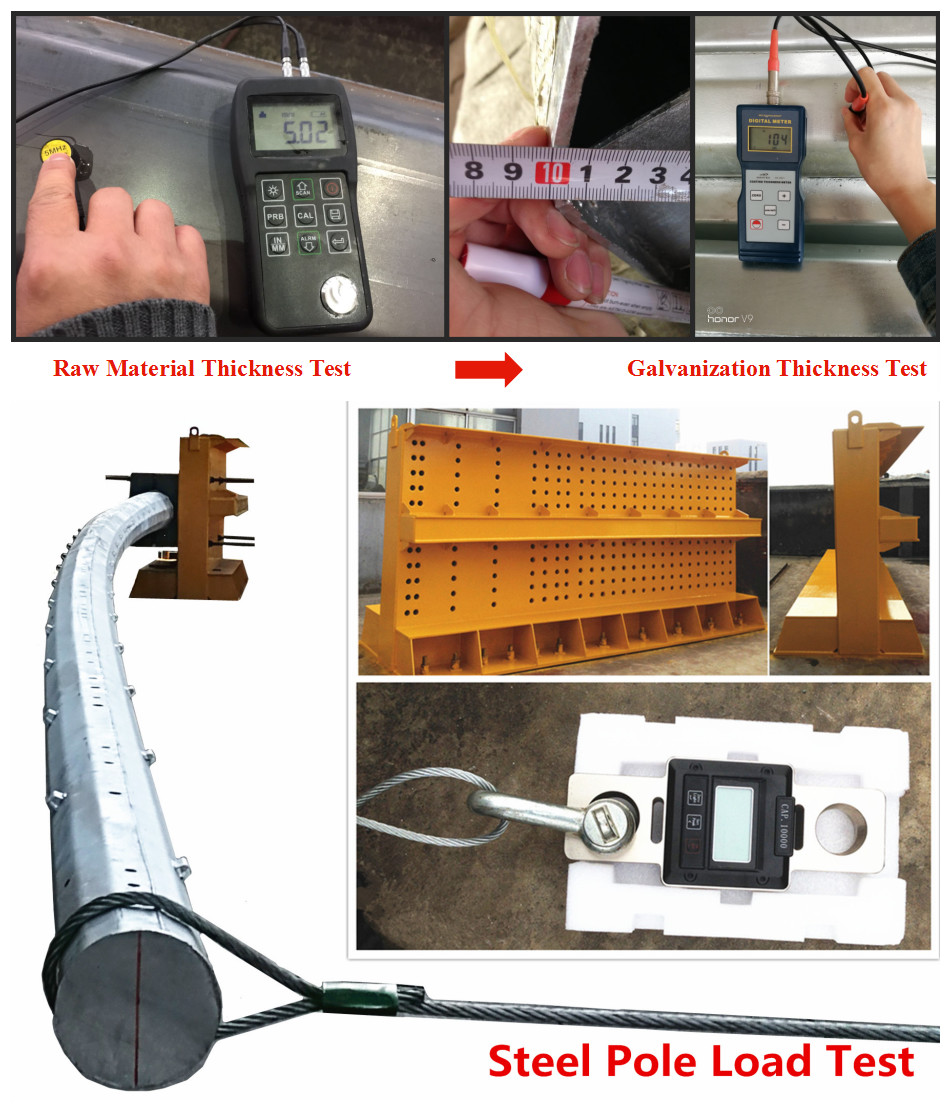

We have Load Test, Galvanization Test, Thickness Test and Tensile Strength Test before delivery. All to ensure good quality.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ:
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Industrial Zone No.37, Heqiao Town, Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port is our nearest port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 20 working days. If our factory is busy and your quantity is large, then around one month.
7. What's your price term?
A: Price Term: EXW, FOB, CFR or CIF.
EXW: Poles Cost
FOB: Pole Cost + Land Transportation + Fee on Port
CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight
CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
