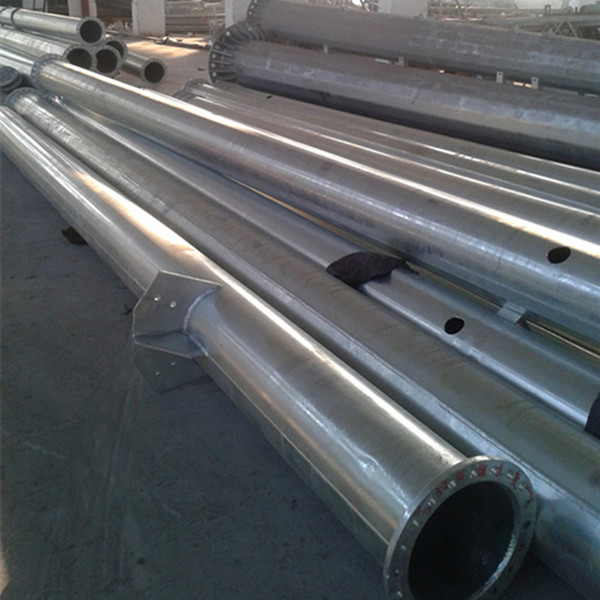

Hot Dip Galvanized Electrical Metal Utility Steel Pole for Railway in Shape Octagonal
Specification
| Products | - Hot Dip Galvanized Electrical Metal Utility Steel Pole for Railway in Shape Octagonal
|
| Type | |
| Height | |
| Shape | |
| Material | - Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
- Min Yield Stree 345 Mpa
- Tensile Strength 470 Mpa ~ 630 Mpa
|
| Wall thickness | |
| Once Forming | Yes |
| Welding | - Welding complies with AWS D1.1 standard.
- CO2 welding or submerged arc auto methods
- No fissure, scar, overlap, layer or other defects
- Internal and external welding
- Ensure 100% complete penetration welds.
|
| Joint | No |
| Base plate | - Base plate is square/round/Polygon with slotted holes for anchor bolts installation.
|
| Galvanization | - Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
|
| Warranty | - More than 25 years, it is according to installing environment
|
Description

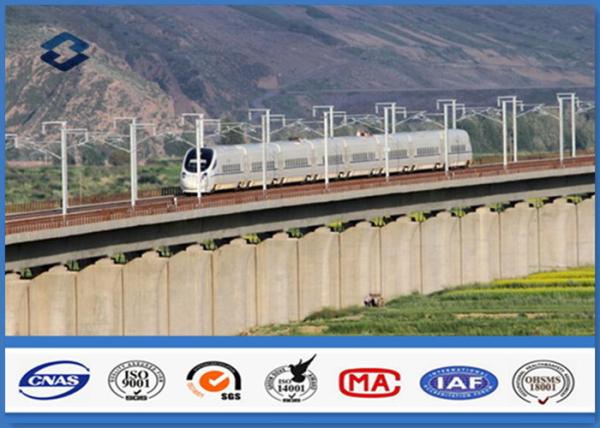

Hot Dip Galvanized Electrical Metal Utility Steel Pole for Railway in Shape Octagonal widely used in electrical power transmission railway station industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.
Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
Material Test:
1. All of our materials are purchased from famous mill factory to assure the quality.
2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;
3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.
Features:
1. We can supply the product based on client's required drawing, but also can supply the design for any kinds of
electric poles for customers to select.
2. Matercial : hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. Deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bubble, Mat &Straw Bale or following client required
5. Length: within 14meters once forming( single section)
6. Thickness: from 2.5mm to 22mm

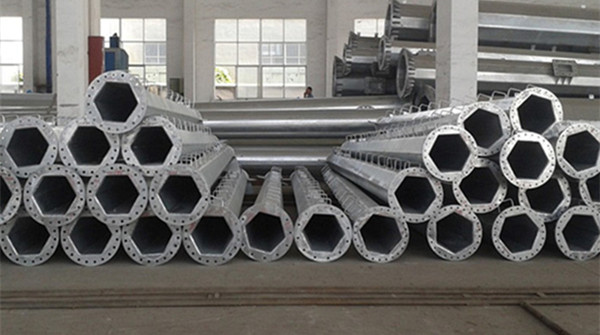

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. Easy install and maintenance.
After - Sales Service
Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from clients in 24 hours, and we improve the quality and working method according to client’s good suggestions.
